X-Three Rooflight—Ventilation Options
Xtralite rooflights can incorporate a range of ventilation and access systems.
Where ventilation is a primary consideration for energy efficient environmental management or smoke control during fires, refer to the Automatic Opening Vent Systems (AOV) page.

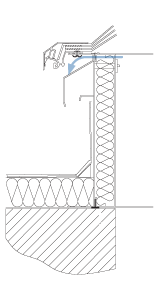

Hit and Miss Vent (01)A unique rotary action vent controller offers variable ventilation, distinctive internal appearance and smooth, silent operation, and prevents ‘in-blown’ roof debris and water ingress. |

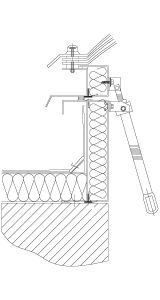

Manual Wormgear Vent (03)The whole rooflight top hinges to allow ventilation through the open vent area. |

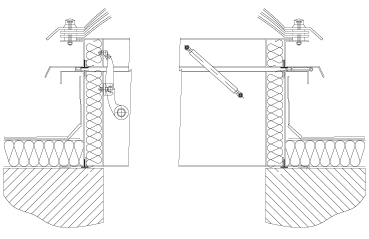

Gas Spring Vent (04G)Gas springs assist opening to 90° for access. Please refer to Xtralite for specific health and safety information. |
|
How to specify Xtralite rooflights |
If you need to know more about the elements that make up the X-Three rooflight, click on the following for more information: Understanding glazingUnderstanding roof fixing and security |
If you would like to specify exactly which X-Three configuration you require, click on the following to go to the specification guide: Go to specification guide |
To find a full range of PDF and CAD drawings for the Xtralite range, click on the following to go to the downloads section: Go to downloads section |
