Product Portfolio Rooflights

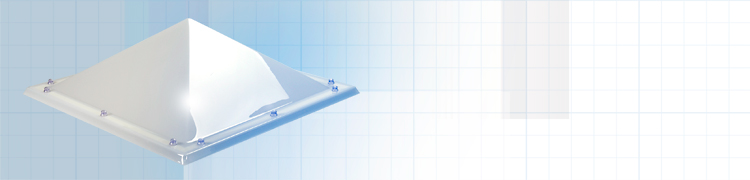

X-Glaze Polycarbonate Glazing



The X-Glaze rooflight range provides single, double or triple skin polycarbonate glazing units for direct fixing to a builder’s kerb or upstand. As there are no integral frames or kerbs, the usual range of Xtralite ventilation, access and other options are not available. Also, the U value provided applies to glazing only, as—for Building
Regulations purposes—the builder’s kerb or upstand forms an integral part of the
roof not the rooflight.



Guide Sizes (mm)

Square

Rectangular

Circular
600 x 600 1200 x 1200
750 x 750 1350 x 1350
900 x 900 1500 x 1500
1000 x 1000 1800 x 1800
1050 x 1050		 600 x 900 900 x 1800
600 x 1200 900 x 2400
600 x 1500 1000 x 1500
600 x 1800 1000 x 2000
600 x 2400 1200 x 1500
900 x 1200 1200 x 1800
900 x 1350 1200 x 2400
900 x 1500 1500 x 2400

600

900
1200

1500
1800



Pyramid (PY)

Dome (DM)

Circular (CIR)

Hexagonal (HEX)



Polycarbonate Glazing Colour


The various glazing layers in Xtralite rooflights can be supplied in four types or colours: clear, opal, bronze or diffused—with the characteristics described below. For information on the light transmission of different types of polycarbonate rooflight glazing in various configurations, refer to the Designing with Daylight section. In addition, all ranges are ‘Non-fragile, Class B’ rating classified to ACR[M]001:2005 ‘Test For Non-Fragility of Profiled Sheeted Roofing Assemblies’, Edition 3—the “Red Book”.



Clear Glazing

  • High light transmission.
  • Placement where glare may occur is a consideration.
  • Allows full vision of views and objects.

Diffused Glazing

  • Maximises privacy.
  • High levels of light transmission
    into a building.
  • Diffuses light transmission and so avoids glare and shadows.
  • Prevents vision of views and objects.

Opal Glazing

  • Maximises privacy.
  • Diffuses light transmission and so avoids glare and shadows.
  • Prevents vision of views and objects.

Bronze Glazing

  • Reduces solar heat gain.
  • Reduces light transmission into a building.



Security


Xtralite offers a range of security options to prevent unauthorised access, depending on the level of security required and product range selected.



Security Screws (SS)

Intruder Grid (IG)

Intruder grid systems may be added to all rooflights in the Xtralite range. They are positioned between the upstand and the roof structure and consist of a 3 mm diameter, solid steel fully welded mesh in a 75 mm grid. This system will resist entry even when the rooflight has been compromised or removed.

How to specify Xtralite rooflights

If you would like to specify exactly which X-Glaze configuration you require, click on the following to go to the specification guide:

Go to specification guide

To find a full range of PDF and CAD drawings for the Xtralite range, click on the following to go to the downloads section:

Go to downloads section
