Semi-circular Barrel Vault Rooflights



The classic vault is a simple semi-circular rooflight that tops the supporting structure; alternatively it can be raised on vertical legs incorporating such features as windows, vents, or louvres. Ends can be terminated with vertical glazed screens or simply abut an adjoining structure.



The spanning performance quoted assumes they are constructed with a classic semi-circular geometry and are self supporting; much larger spans can be achieved although a substructure for additional support would then be required.



The design may be glazed with a range of polycarbonate options—from solid single skin for canopies and unheated spaces, to multi-wall structured giving exceptional thermal performance for Part ‘L’ compliance.



All metal parts can be mill finish for economy or, alternatively, colour coated with polyester powder, PVF2 or anodised.

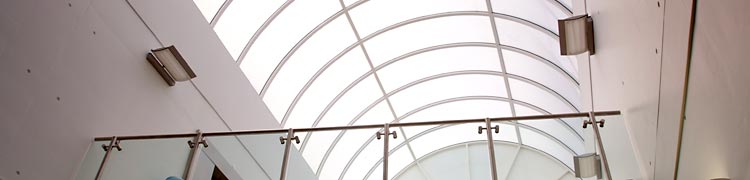

Shown here are photos from an installation, designed and constructed with semi-circular geometry.



Such details are indicative only— project specific designs and details are produced for each project engineered by Xtralite.



For more information on the semi-circular barrel vault contact Xtralite’s structural department on 01670 354157 or email xspan@xtralite.co.uk.



Specification
Maximum spans:	Up to 7.0 m (self supporting).
Length:	Infinite length.
Loading:	Designed in accordance with CP 3 Chapter V Part 2:1972 BS 6399 :Part 1 and Part 3 1984 max. 1.5 kPa wind and 0.75 kPa imposed.
Safety:	ACR[M] 001:2005 Class B option available.
Glazing options:	Glazing in glass or structured and solid polycarbonate.
Thermal performance:	Part L: below 2.0 W/m² K options available.
Fire regs’:	BS 476 Part 7 :class 1(1991) Class‘0’ Tp(a).
Surface finish:	Mill finish, polyester powder, PVF 2 and anodised.
